PRO2093-50C: 50M HDMI Extender by 1x CAT5E/CAT6
50M HDMI Extender by 1x CAT5E/CAT6
Promotion:
For Large Quantity Orders, Feel Free to Contact us at Anytime.
Description
Additional information

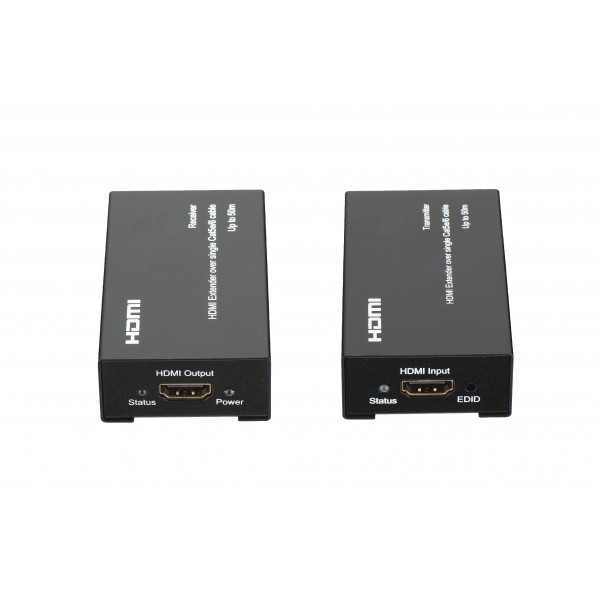

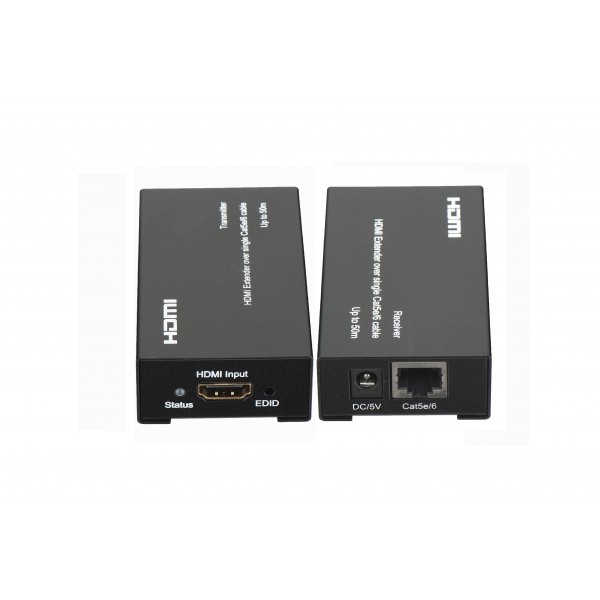

50M HDMI Extender by 1x CAT5E/CAT6
Features

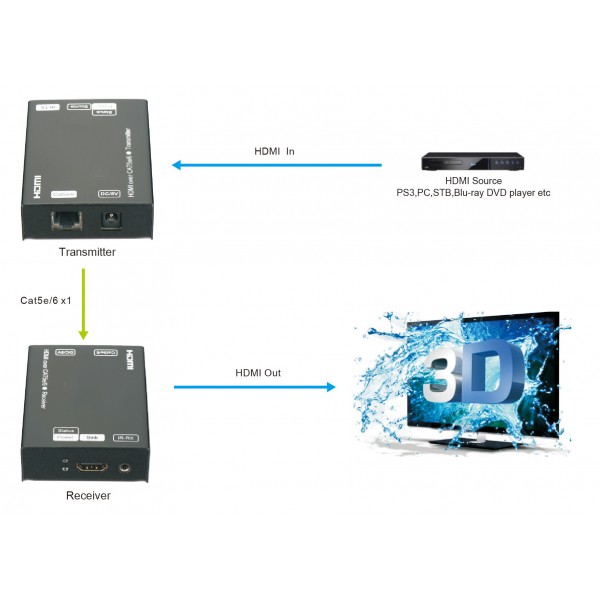

- Each set includes one transmitter and one receiver
- Use single UTP LAN cable（Cat5E/6)to substitute HDMI cable to achieve long distance transmission,the UTP Cable follows the standard of IEEE-568B
- Transmission distance extend up to 50 meters under 1080P
- Supports Deep Color up to 36 bits
- Supports lossless compressed digital audio:Dolby TrueHD, DTS-HD Master Audio
- Transmit Digital Audio and Video over the CAT6 / CAT5e cable with zero signal loss
- Data transfer speed 6.75 Gbps
- DC 5V power supply
- EDID copy function
Operating Temperature Range -5 to +35℃(+23 to +95℉)
Operating Humidity Range 5 to 90%RH (No Condensation)
Input Video Signal 0.5-1.0 Volts P-P
Input DDC Signal 5 volts p-p(TTL)
Support Video Format HDTV 1080P 3D videoâ‘
Video Output HDMI, HDCP
Support Audio Format DTS-HD Master Audio
Dolby true-HD
Transmission Distance 1080P 8-bit 50m(Maximum) over
single CAT5E/6 /24AWG/Solidâ‘¡
Power consumption 5watts(Maximum)
Dimension (L×W×H) 83x48x25mm
Net Weight 250g(Pair)
