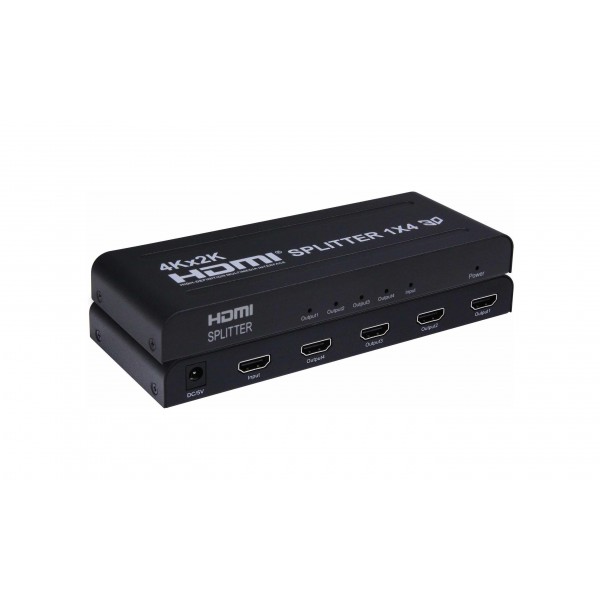

PRO2092A-04: 4K2K HDMI Splitter, 1 In 4 Outs out|*

4K*2K HDMI Splitter, 1 In 4 Outs. This is an HDMI splitter with four outputs. It distributes the input of the HDMI signal into the four identical outputs simultaneously. It supports full 3D format and 4Kx2K. Its video amplifier bandwidth can be up to 3.2

Promotion:

For Large Quantity Orders, Feel Free to Contact us at Anytime.

Quantity:

Add to Favorite Items Print

Description

Additional information

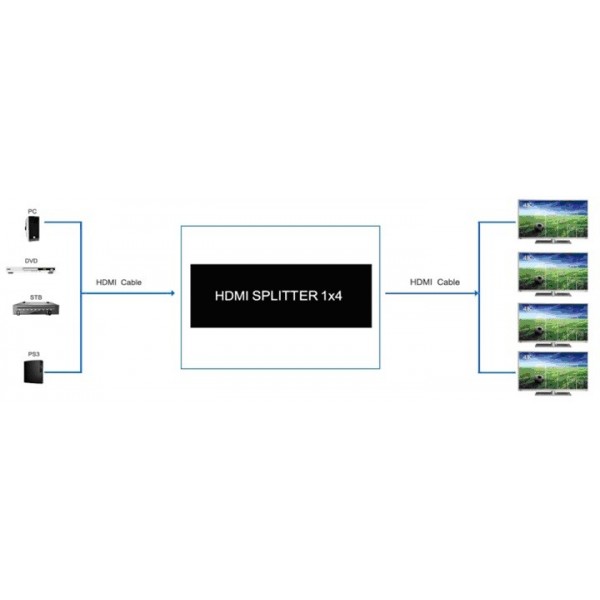

This is an HDMI splitter with four outputs. It distributes the input of the HDMI signal into the four identical outputs simultaneously. It supports full 3D format and 4Kx2K. Its video amplifier bandwidth can be up to 3.2 Gpbs/320MHz.

Features

Support high resolution up to 3840X2160/30HZ
Support 3D video format
Support highest rate of 3.2 G and TMDS clock can be up to 320 MHz
Support 8/10/12 bit deep color
Support AWG26 HDMI standard cable (Input 15M, Output 25M)
4K Resolution (Input 12M, Output 15M)
5V/1A power adapter

Specifications

HDMI resolution 3840*2160/30Hz
Support video format 8/10/12 bit deep color
Support audio format DTS-HD/Dolby-trueHD
DTS/Dolby-AC3/DSD
Max bandwidth                                 320MHz
Max band rate 3.2Gbps
Max working current 500mA
Power adapter format Input AC (50HZ, 60HZ) 100V-240V
Output: DC5V/2A
Operating Temperature range       (-15 to +55℃)
Dimension (L x W x H)                     178x66x20 (mm)
Weight 220g
