PPA455: 120W, 70V /100V P.A. Amp. USB, Bluetooth, FM, SD

120W/ 70V/100V Public Address Amplifier With USB /Bluetooth/FM/SD

Promotion:

For Large Quantity Orders, Feel Free to Contact us at Anytime.

Quantity:

-
+
Add to Favorite Items Print

Description

Additional information

FEATURE

Output Power: 120W

Output Interface: 4 - 8 Ohms, 70V, 100V

MP3 Player: USB / SD / Bluetooth / AUX

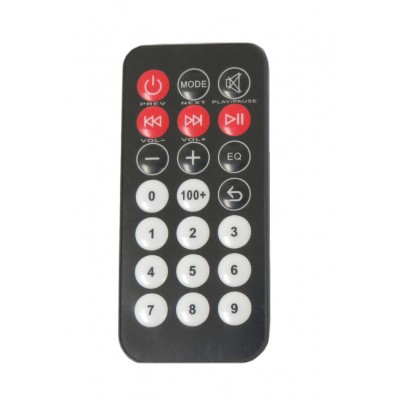

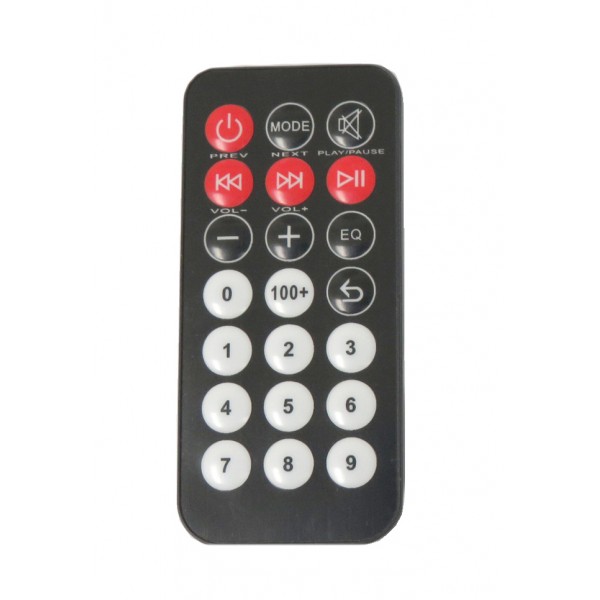

Other Functions: FM Radio, Phone, AUX,  Remote control

Connection Type: Bluetooth Version: 4.0

FM Radio function: Yes

Type: USB Powered Mini Audio Amplifier

Input Interface: AUX*2,MIC*2,USB,SD

Input Sensitivity: AUX-400mv, MIC-10mv

Shell / Body Material: Metal

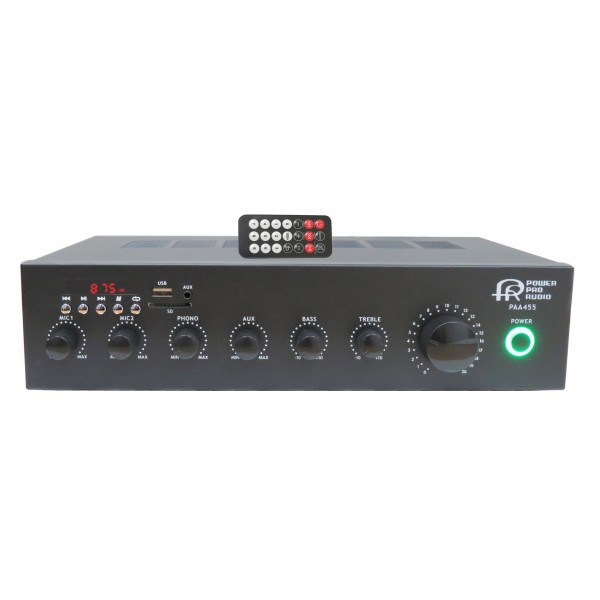

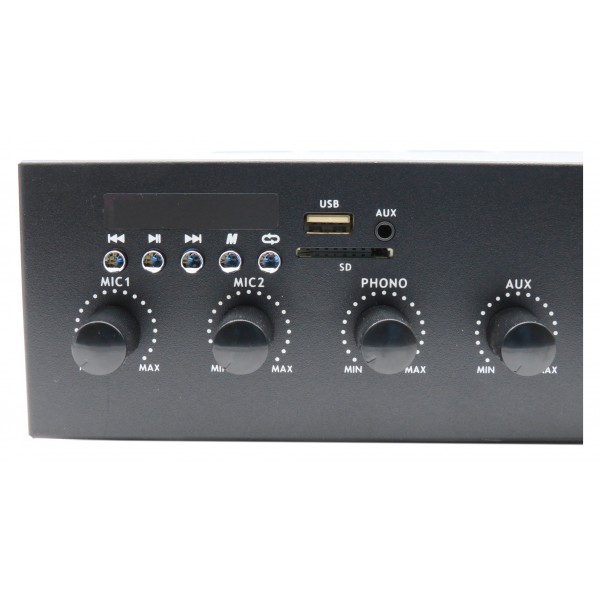

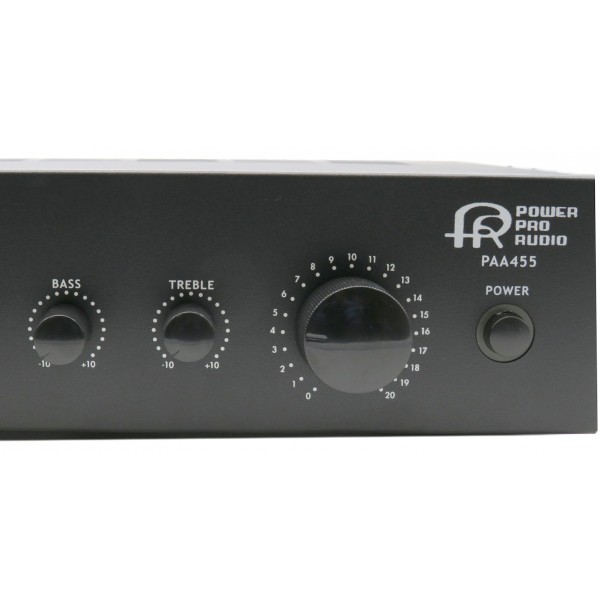

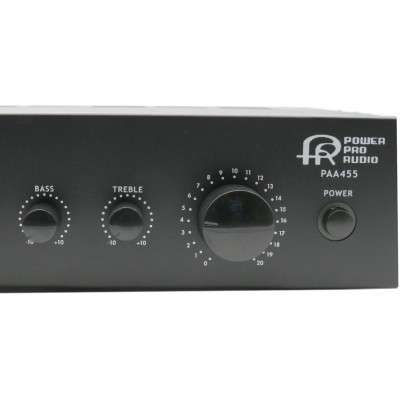

Front panel

1: MIC1,2, volume control

2: Phono / AUX volume control

3: Bass & Treble Tone control

4: Master volume control

5: Main Power switch

6: Media Player MP3 Player, FM Radio, Bluetooth USB Port, SD card slot

7: MP3 module screen & IR Remote receiver

8: MP3 module control keys

(Mode, Previous, Play / Pause Track, Next, Repeat mode setting)

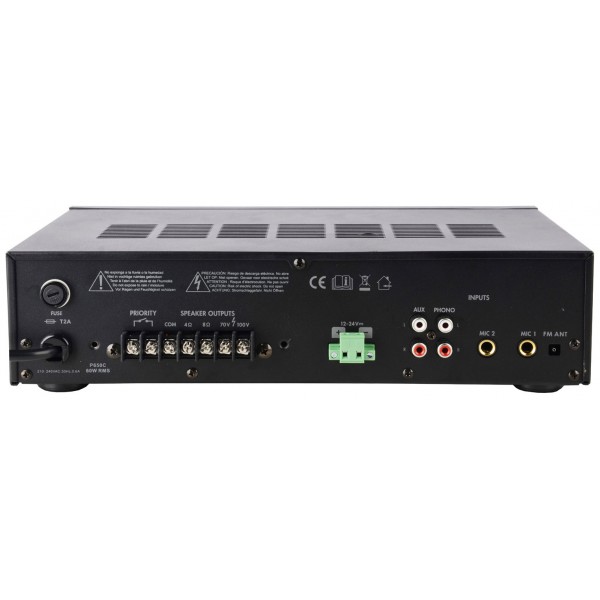

Rear Panel

1: AC fuse 2A & AC Power input

2: Mute Control  Priority)

3: 4 - 8ohms, 70V, 100V Speaker outputs

4: DC24V input

5: Phono / AUX RCA input

6: 6.35mm MIC1,MIC2 input

7: FM Antenna





Technical data

Output Power(RMS): 120W

Frequency response:  MIC:100Hz-20kHz Line: 20Hz-20kHz

THD at 1kHz: Less than 1%

Input sensitivity: Input 1, 2, Mic:5mV)

                         Input 3, Aux:400mV)

Output interface: 4ohm, 8ohm, 70V, 100V

Signal-to-noise Ratio: Mic: >70dB Line: >80dB

Power Consumption: AC110V /220V, (AC 50/60Hz), DC24V

Dimensions: WxHxD: 325x85x220mm
