PPA455: 120W, 70V /100V P.A. Amp. USB, Bluetooth, FM, SD
120W/ 70V/100V Public Address Amplifier With USB /Bluetooth/FM/SD
Promotion:
For Large Quantity Orders, Feel Free to Contact us at Anytime.
Description
Additional information
FEATURE
Output Power: 120W
Output Interface: 4 - 8 Ohms, 70V, 100V
MP3 Player: USB / SD / Bluetooth / AUX

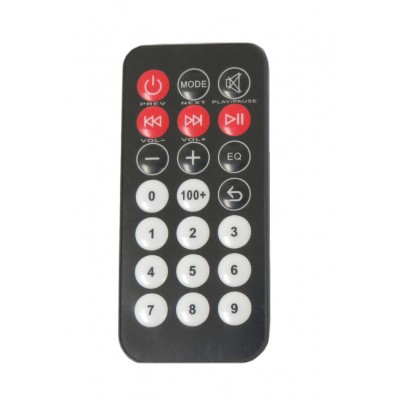

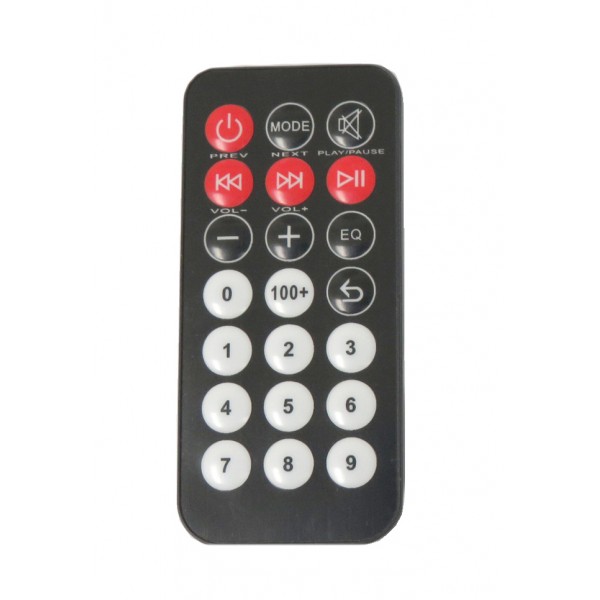

Other Functions: FM Radio, Phone, AUX, Remote control
Connection Type: Bluetooth Version: 4.0
FM Radio function: Yes
Type: USB Powered Mini Audio Amplifier
Input Interface: AUX*2,MIC*2,USB,SD
Input Sensitivity: AUX-400mv, MIC-10mv
Shell / Body Material: Metal

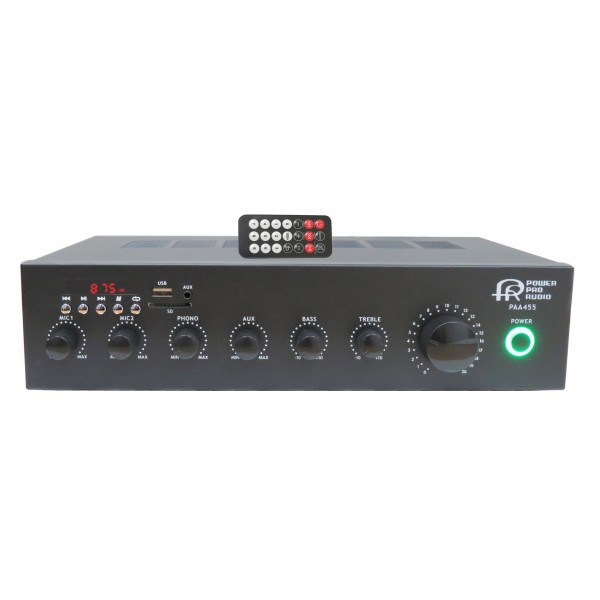

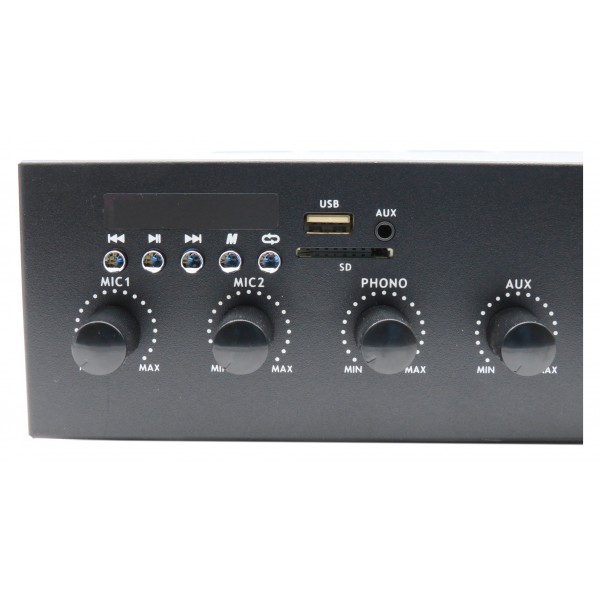

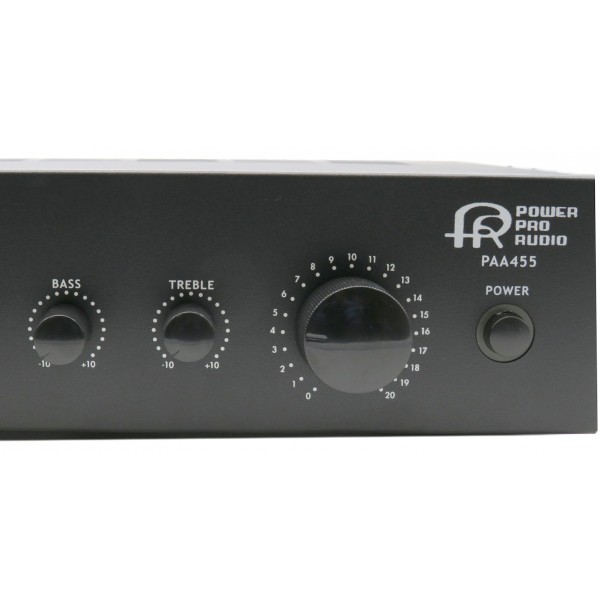

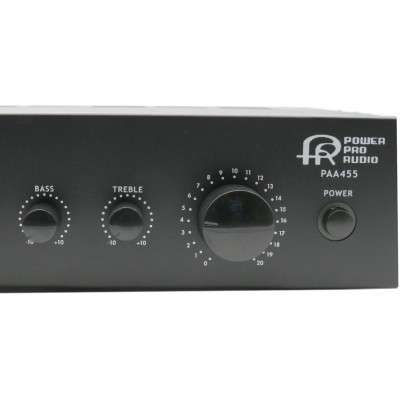

Front panel
1: MIC1,2, volume control
2: Phono / AUX volume control
3: Bass & Treble Tone control
4: Master volume control
5: Main Power switch
6: Media Player MP3 Player, FM Radio, Bluetooth USB Port, SD card slot
7: MP3 module screen & IR Remote receiver
8: MP3 module control keys
(Mode, Previous, Play / Pause Track, Next, Repeat mode setting)

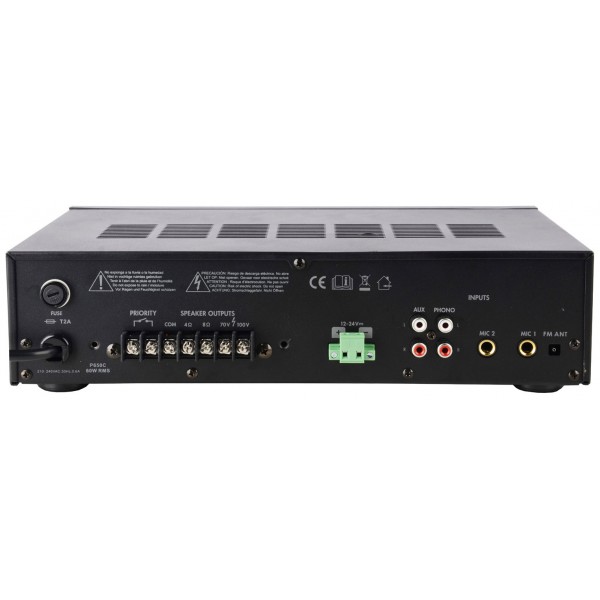

Rear Panel
1: AC fuse 2A & AC Power input
2: Mute Control Priority)
3: 4 - 8ohms, 70V, 100V Speaker outputs
4: DC24V input
5: Phono / AUX RCA input
6: 6.35mm MIC1,MIC2 input
7: FM Antenna
Technical data
Output Power(RMS): 120W
Frequency response: MIC:100Hz-20kHz Line: 20Hz-20kHz
THD at 1kHz: Less than 1%
Input sensitivity: Input 1, 2, Mic:5mV)
Input 3, Aux:400mV)
Output interface: 4ohm, 8ohm, 70V, 100V
Signal-to-noise Ratio: Mic: >70dB Line: >80dB
Power Consumption: AC110V /220V, (AC 50/60Hz), DC24V
Dimensions: WxHxD: 325x85x220mm
