ET1025E-65W: 65W PD Protocol Soldering Iron

The Soldering Iron is heating tool powered by PD power supply with an LED display

Promotion:

For Large Quantity Orders, Feel Free to Contact us at Anytime.

Quantity:

Description

Additional information

The Soldering Iron is heating tool powered by PD power supply with an LED display. It heats up fast and is simple, quick and easy to operate with buttons.

• Its structure consists of PD socket, handle, control part and one-piece heater.

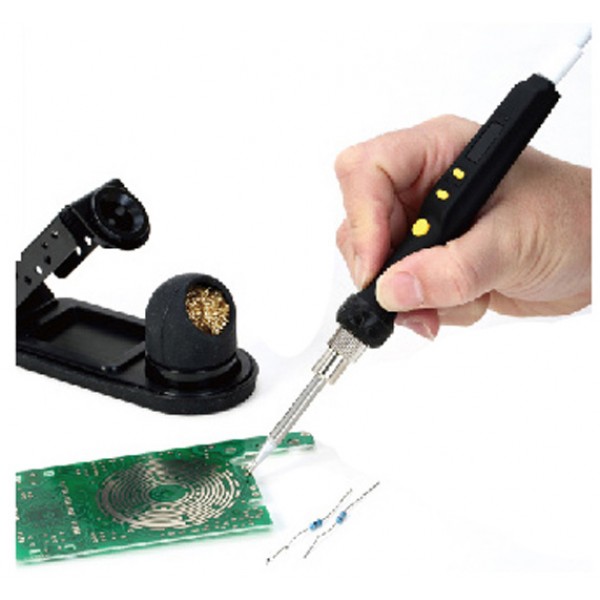

• Can be widely used in electronic research and production, especially suitable for home appliance repair and communication equipment maintenance.

Functions

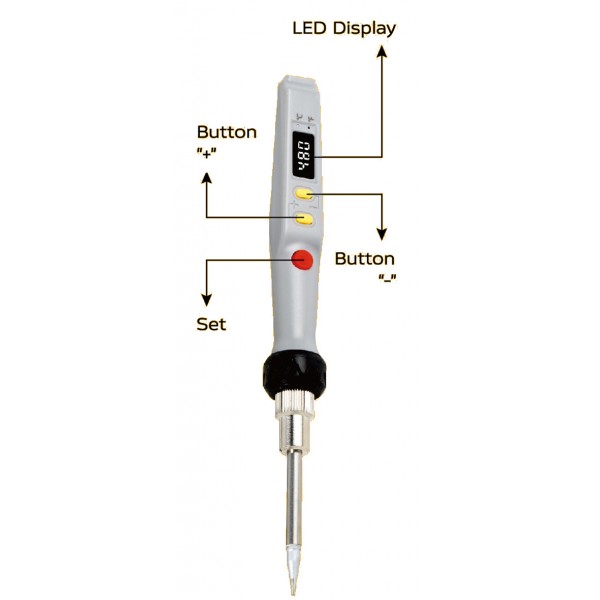

1. LED display

Screen display	Function	Details
SLP	Sleep function	Sleep time available: 20,15,10,05,02,01,00. Numbers represent minutes, example: 05 means 5 minutes. 00 means sleep function off.
-U-	Input voltage	Input voltage available: U05,U09,U12,U19,U20. Example: U20 means 20V. Note: when U05 is displayed (i.e., input voltage is 5V), the item heats up slower and cannot reach the max temperature.
C-F	Temperature unit	Select the Temperature unit between ℃ and ℉
AdJ	Temperature calibration	Setting: -9-0-9；Example: if the temperature is higher, then reduce the number.
	Sleep temperature	Set the sleep temperature between 160℃ and 320℃

Specifications

Model	ZD-450
Power socket	TYPE-C
Protocol supported	PD/QC
Input	5-20V
Temperature	160-480℃
Display	LED
Power	60W max

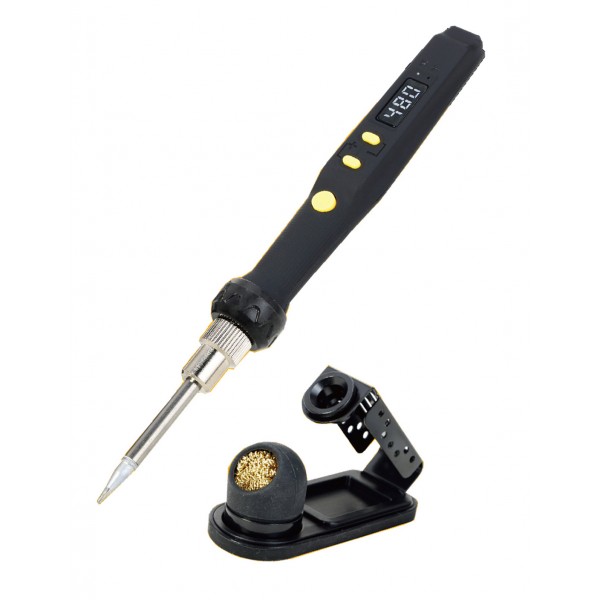

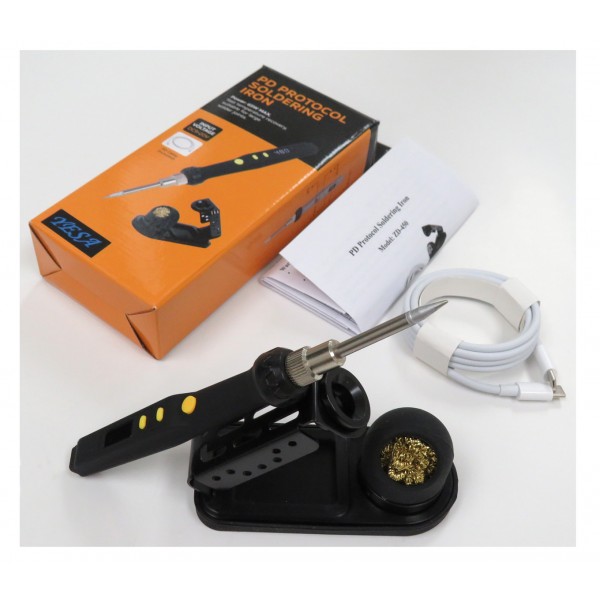

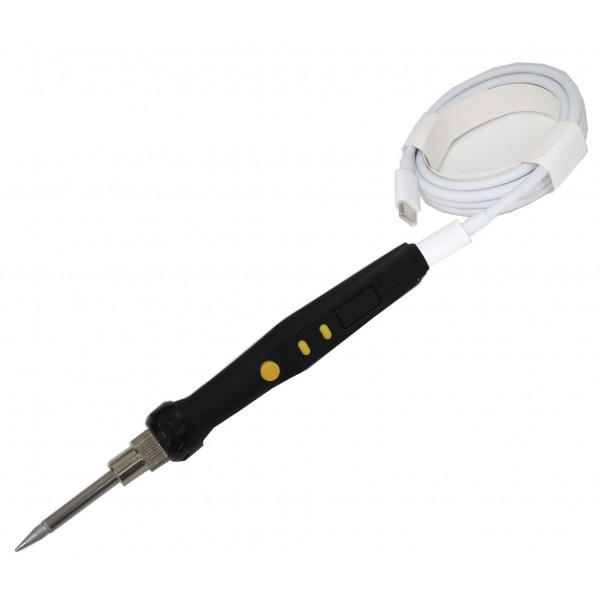

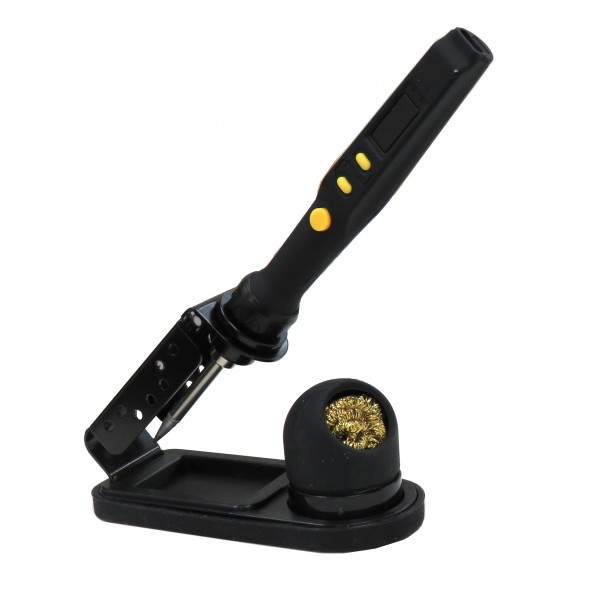

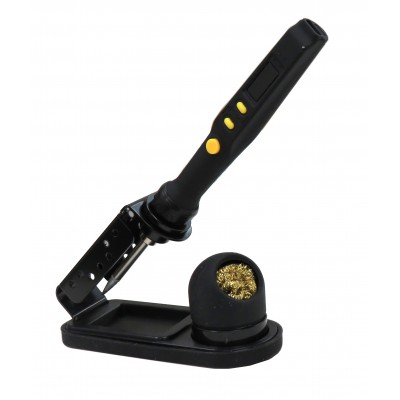

Parts list	Soldering iron stand, cleaning ball, PD cable, one-piece tip&heater
Certification	CE\ EMC\ROHS\REACH
