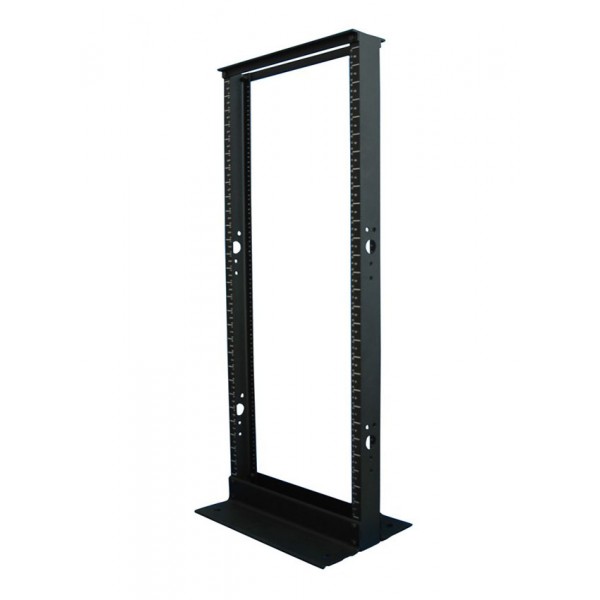

CAT-42: 20U 2-Post Open Frame Networking Rack
20U 2-Post Open Frame Networking Rack, 19" Width x 41" high, Organize and Secure Network Rack Equipment,
Promotion:
For Large Quantity Orders, Feel Free to Contact us at Anytime.
Description
Additional information
Feature:
1.＂U＂shaped rails 3＂x1 1/4＂tapped both front and rear with EIA compliant RMS space
2.Base with perforated holes for floor anchoring
3.Reinforced angled top brace supports
4.Quality| Durable & Heavy Duty type
5.Both mounting post with U mark
6.Meets or exceeds EIA-310D standards
7.Height 20U | 41"
8.Easy to assemble
9. Toolless button keyhole mounting slots accept PDUs or cable managers
Loading Capacity: Static loading is 100kg
Mountings hardware included
Materials:
SPCC cold rolled STEEL,
Thickness: Mounting post: 2.5mm
Angle: 3.0mmSpace bar: 1.8mm
Color: Black
20U | (W*D*H | inche)20.47"x3"x41"(in)
(W*D*H | mm)520*76*1030mm
