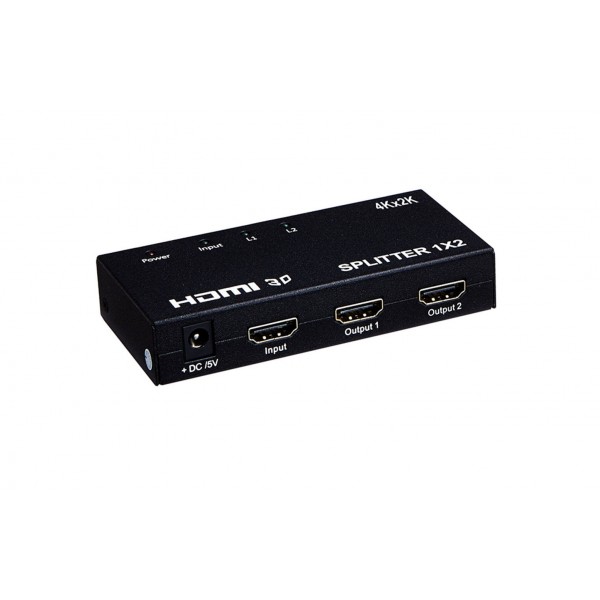

PRO2092A-02: 4K*2K HDMI Splitter, 1 In 2 Outs

4K*2K HDMI Splitter, 1 In 2 Outs. This is an HDMI splitter with two outputs. It distributes the input of the HDMI signal into the two identical outputs simultaneously. It supports full 3D format and 4Kx2K. Its video amplifier bandwidth can be up to 3.2G

Promotion:

For Large Quantity Orders, Feel Free to Contact us at Anytime.

Quantity:

Add to Favorite Items Print

Description

Additional information

This is an HDMI splitter with two outputs. It distributes the input of the HDMI signal into the two identical outputs simultaneously. It supports full 3D format and 4Kx2K. Its video amplifier bandwidth can be up to 3.2Gpbs/320MHz.

Features

Support high resolution up to 3840X2160/30HZ
Support 3D video format
Support highest rate of 3.2 G and TMDS clock can be up to 320 MHz
Support 8/10/12 bit deep color
Support AWG26 HDMI standard cable (Input 15M, Output 25M)
4K Resolution (Input 12M, Output 15M)
5V/1A power adapter

Specifications

HDMI resolution 3840*2160/30Hz
Support video format                       8/10/12 bit deep color
Support audio format                      DTS-HD/Dolby-trueHD/
DTS/Dolby-AC3/DSD
Max bandwidth 320MHz
Max band rate                                  3.2Gbps
Max working current 500mA
Power adapter format:                    Input AC (50HZ, 60HZ) 100V-240V
Output: DC5V/1A
Operating Temperature range (-15 to +55℃)
Dimension (L x W x H) 105x50x20mm
Weight 120g
