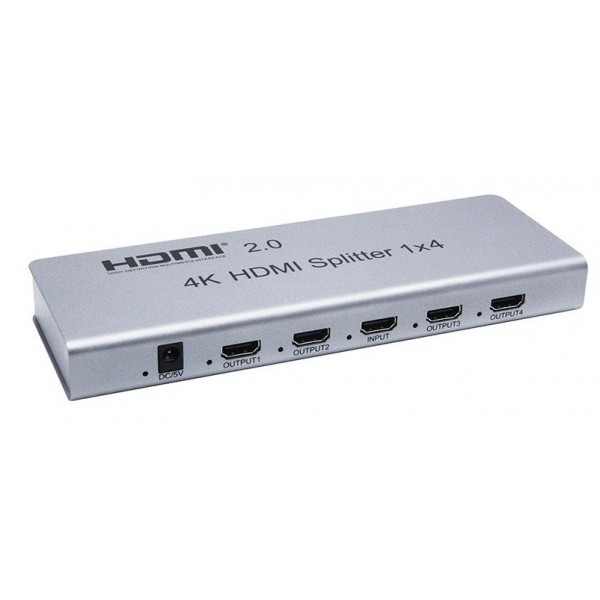

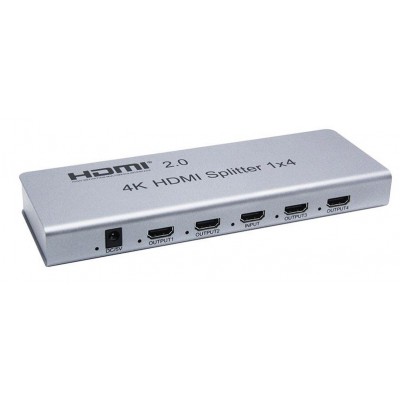

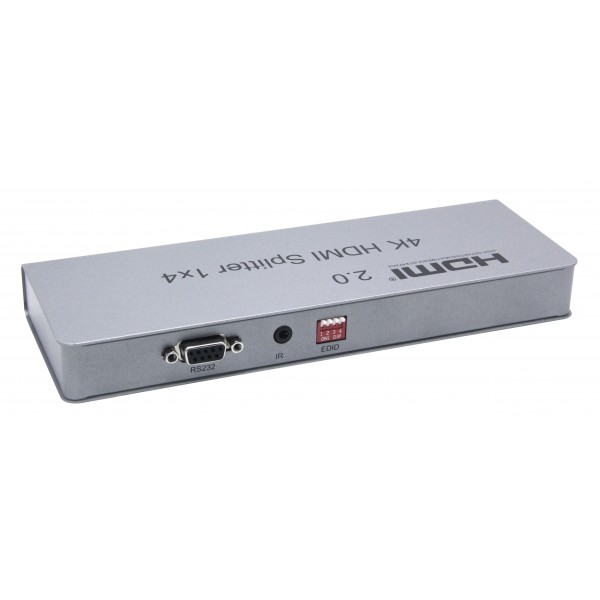

PRO2092-04: V2.0/4K HDMI Splitter, 1In-4 Outs W/IR Extensioout

This 1x4 HDMI Splitter uses a single HDMI source, accessing to multiple HDMI sinks. It allows one HDMI device to be split easily to 4 HDMI compatible monitors or projectors. it can be placed at the end of a long HDMI cable to regenerate the HDMI signal

Promotion:

For Large Quantity Orders, Feel Free to Contact us at Anytime.

Quantity:

Add to Favorite Items Print

Description

Additional information

This hdmi splitter can be up to 3840X2160/60Hz.This product can support EDID management function,

comes with eight kinds of EDID mode, the users can choose according to their own needs. In addition,

this product is with built-in IR extension function, it can work with our hdmi 2.0 repeater which has

IR-RX to receive the IR command to control the source

FEATURES

● Support HDMI V2.0 ,HDCP2.2
● Support 3D video format
● Support high resolution up to 3840X2160/60HZ
● Support the max baud rate of 6G and TMDS clock can be up to 600 MHz
● Support 8/10/12 bit deep color
● Support AWG26 HDMI standard cable:

when the resolution is 1080p and below, input up to 8 meters,output to 8 meters.

when the resolution is 4K, input up to 8 meters, output up to 8 meters.

● Support single HDMI source ? accessing to multiple HDMI sinks, the source can be DVD player, A/V receiver, set top box and etc.
● Built-in IR extension function.?it can work with our hdmi 2.0 repeater which has IR-RX to receive the IR command to remote control the source)
● Support serial port online upgrade
● Support EDID management
● 5V/2A power adapter

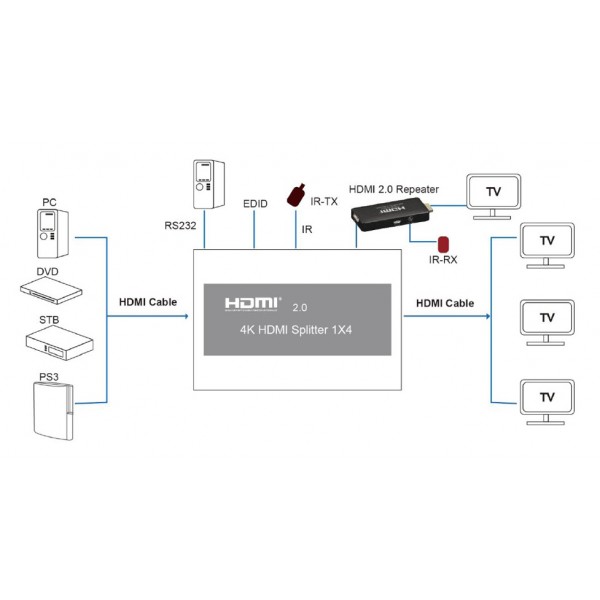

IR Extension description?

There is an IR TX Extension port, it can be used with an optional HDMI 2.0 repeater which works

as IR-RX and IR extended via HDMI cable
