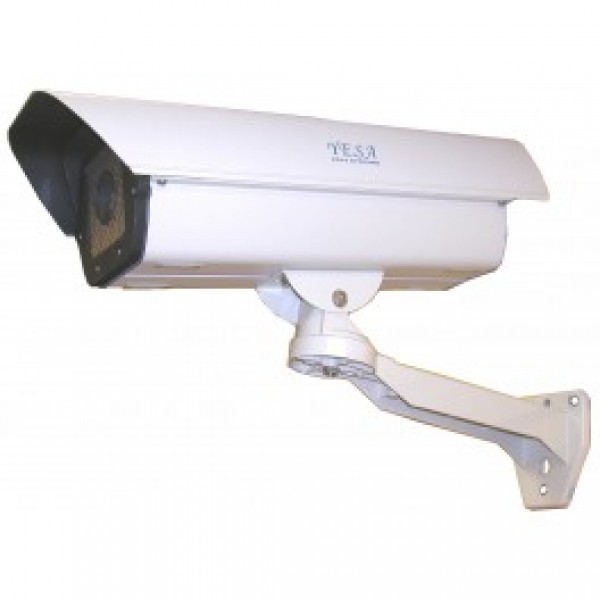

YCC806CIR-50M: 50Meter IR Camera W/Waterproof Housing

YCC806CIR-50M: 50Meter IR Camera W/Waterproof Housing

Promotion:

For Large Quantity Orders, Feel Free to Contact us at Anytime.

Quantity:

-
+
Add to Favorite Items Print

Description

Additional information

SPECIFICATION

YCC806 CIR-50M

EFFECTIVE PIXELS

NTSC:510(H) X492(V)
PAL: 500(H) X 582(V)

HORIZONTAL

380 TV LINES

SCANNING FRENQUENCY

NTSC: 525 LINE
PAL: 625 LINE
2:1 INTERLACE

SYNC SYSTEM

INTERNAL

SIGNAL TO NOISE

48dB

GAMMA CORRECTION

0.45

WITH BALANCE

AUTO

GAIN CONTROL

AGE

BLC

NTSC:1/60-100000SEC
PAL: 1/50-110000SEC

ELECTRONIC SHUTTER

1.0VP-P / 75OHM

VIDEO OUTPUT (MM)

3.6/6.0/8.0/
12.0/16.0/25.0

LENS

80°/53°/
40°/28°/19°/13°

LENS VIEW ANGLE

80°/40°

IR DISTANCE

50M

SENSIVITY

IR ON~0 LUX/IR OFF~1 LUX

IR LED

80PCS

LED LIFE

10000 HOURS

IR WAVELENGTH

850NM

PROTECTION CLASS

IP 66 CLASSIFICATION

CONTROL TEMPERATURE

BLOWER, HEATER

TEMPERATURE

-10°C ~+60°C

POWER SUPPLY

12VDC / 90~260VAC (50-60HZ)

DIMENSION

140 X 112 X 400MM
